Xzh Test Factory Underground Cable Fault Distance Precise Locator

Product Overview

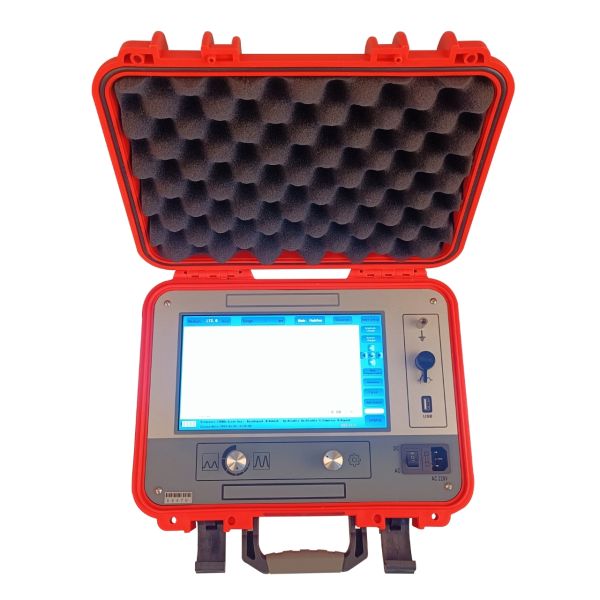

XHGG502A ARC cable fault prelocator uses an industrial-grade 10.1-inch touch screen and a simple Windows operating system. It adopts industrial-grade integrated circuits and devices and has a built-in large-capacity lithium-ion battery. It is a special instrument for measuring and analyzing the status and fault distance of power cables. It is stable, reliable and easy to use.

It uses a combination of modern electronic technology and computer technology to implement signal filtering, acquisition, data processing, graphic display, and graphic analysis to complete cable speed measurement, cable length testing, and cable fault distance testing.

It is suitable for low-resistance, short-circuit, open-circuit and disconnection faults of power cables, high-frequency coaxial cables, street light cables, and buried wires made of various materials with different cross-sections and media, as well as high-resistance leakage and high-resistance flashover. Network fault.

ARC Cable Fault pre-locator XHGG502A	Pre-location method	LV TDR (low voltage pulse method/ impulse reflection method)
		HV TDR(high voltage flashover method /single impulse method )
		ARC (multiple impulse arc reflection method)
		ICE (impulse current method) DECAY (voltage decay method)
		Automatically test velocity speed
	Display	10.1 inch industrial-grade computer control, touch operation mode
	System	Windows operating, automatic generate test reports.
	Function	Speed, resistance, distance measurement
	Sampling frequency	1MHz~400MHz
	Low voltage pulse amplitude	300V±15%
	Pulse width	0.15uS/0.30uS/0.60uS/1.20uS/2.4uS/5.0uS/7.5uS/10uS;
	Measuring distance	100m/300m/500m/1km/3km/5km/10km/25km/50km/100km/120km;
	Reading resolution	0.07m;
	Test accuracy	≤±(0.5%×L+1m), L is the cable length;
	Cable length choice	100m/300m/500m/1km/3km/5km/10km/25km/50km/100km
	Pulse coupler withstand voltage	35kV DC
	Test blind zone	≤10m
	Data storage	Stores more than 8,000 records of low-voltage pulse and high-voltage flashover waveforms, and more than 250 records of multiple pulse waveforms.
	Power supply	charging AC110V~240V, 50Hz/60Hz; Built-in 5200mAH lithium battery power supply; charging time is about 2 hours, working time is more than 5 hours;
	Communication	With standard USB interface
	Working conditions	Temperature -25ºC~+65ºC, relative humidity 85%, atmospheric pressure 750±30mmHg;
	Volume and weight	Cable fault tester L358mm×W284mm×H168mm-4.7kg; Pulse coupler L430mm×W380mm×H220mm-10kg.

Main features
1.10.1-inch full-color TFT touch display;
2. Embedded system, safe, stable and simple display and operation mode;
3. It has the function of testing cable wave speed, cable length and fault distance;
4. Fully automatic continuous sampling, waveform capture at all times, timely and accurate.
5. Equipped with automatic test range setting, automatic waveform analysis and display of test distance.
6. Full English menu, two operation modes of touch and code buttons, simple, fast and reliable.
7. Equipped with testing technology of low-voltage pulse method, high-voltage flashover method, and multiple pulse method (8 times), the waveform display is smooth and easy to interpret.
8. When using the multiple pulse method, it is used with a pulse coupler to display 8 groups of high and low voltage waveform comparisons, which is convenient for automatic distance testing, manual analysis and distance measurement.
9. The instrument has powerful data processing capabilities, making it convenient for users to manage and archive waveform files.
10. It has a massive test waveform storage function: it can store the waveforms collected during on-site testing for observation and analysis at any time; it uses USB communication to import the waveform files into the computer software for management and analysis.
11. Ultra-high brightness, LED backlight brightness reaches 280nit, resolution 1024*600, easy to operate in an environment exposed to direct sunlight.
12. Built-in large-capacity lithium battery pack supports fast charging and can be tested in no power supply environment.
13. Use a protective chassis, no less than IP54.
