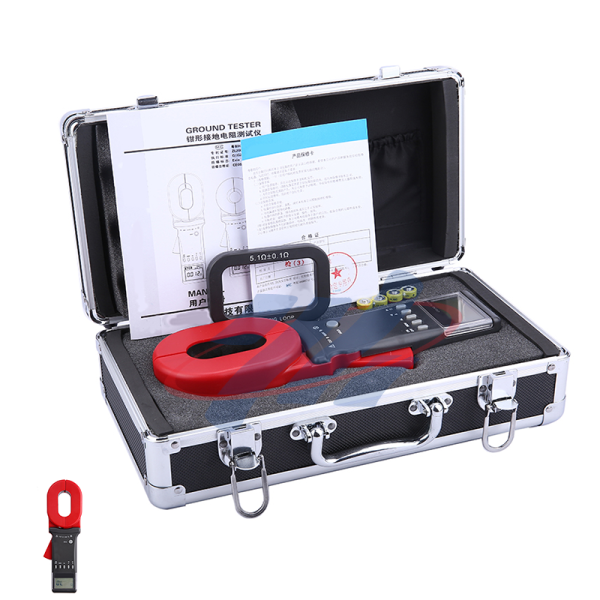

Single Jaw Oval Clamp Ground Resistance Tester

Name: Single Jaw Oval Clamp Ground Resistance Tester
Brand: XZH TEST
Price: 1 USD

Brand Name : XZH TEST

Model Number : XHDQ703

Certification : ISO CE

Place of Origin : Xi'an Shaanxi China

MOQ : 1set

Payment Terms : T/T

Supply Ability : 3000unit/year

Delivery Time : 5-8 work days

Packaging Details : wooden packaging

Jaw Dimensions : 65 mm × 32 mm

Jaw Opening : 32 mm

Contact Now

Product Brief

XHDQ703 Single-jaw Earth Resistance Tester is a versatile device for earth and loop resistance measurement, widely used in power, meteorology, oilfield, construction and industrial electrical equipment. It enables non-destructive testing of looped earthing systems without disconnecting down-leads or using auxiliary electrodes. Ideal for detecting undetectable earth faults and working in unapproachable scenarios for traditional tools, the XHDQ series clamp-on tester delivers the integrated resistance value of earth electrodes and their connecting leads.

Key Advantages

★Dual functions: Earth resistance & loop resistance testing;

★Ultra-fast start-up: 0.5-second self-test, one-click instant activation;

★Intelligent operation: Auto recognition of interference signals & auto gear adjustment;

★Practical configurations: Acousto-optic warning system + RS232 interface;

Single Jaw Oval Clamp Ground Resistance Tester

Technical Specifications
☆ Power Supply: 6V DC (4 x AA alkaline batteries)
☆ Resistance Range: 0.01 – 1200 Ω; Accuracy: ±1% ±0.01 Ω; Resolution: 0.001 Ω
☆ LCD Display: 4-digit digital LCD
☆ Data Storage: 99 sets
☆ Operating Temperature & Humidity: -20°C – 55°C; 20% RH – 90% RH
☆ Jaw Dimensions: 65 mm × 32 mm
☆ Jaw Opening: 32 mm
